Vacuum degasser for drilling mud circulation
Why use vacuum degasser for drilling mud?
During the drilling process, the gas contained in drilling fluids from wells affects the mud property, brings hidden danger, and shortens the service life of some equipment. So, it is necessary to install a vacuum degasser to eliminate gas from the mud.
The basic principle of drilling mud degasser
Vacuum degasser utilizes negative pressure by the vacuum pump to withdraw entrained gases from the mud. In order for this to work, mud is pumped through a venturi, which develops a negative pressure in the vessel by vacuum pump, thus sucking mud into the unit. The choice between horizontally- or vertically-mounted units are typically based on the footprint requirements of the specific rig.
The functions of vacuum degasser
Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity, and reducing drilling costs. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification systems.
Degasser's Features and Advantages:
- Scientific reasonable design for the structure, it can get effective gas fluids separation, filter out impurities to guarantee vent pipe always clear.
- Adopt belt drive, avoid the complication of the reducing gear, ensure the long working time without trouble.
- The water circle type of vacuum pump is always at a constant temperature, applies to pump the flammable and explosive.
- High degassing efficiency, up to 95%.
- There is a gas-water separator in vacuum degasser, which can avoid the gas and fluids are all removed together,and also can supply water for vacuum pump, saving water and environment-friendly.
Degasser's Specifications
| Model | APZCQ240 | APZCQ270 | APZCQ300 | APZCQ360 |
| Max. Capacity | 240m³/h | 270m³/h | 300m³/h | 360m³/h |
| Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Main Motor | 15KW | 22KW | 30KW | 37KW |
| Pump Motor | 2.2KW | 3KW | 4KW | 5.5KW |
| Speed | 860rpm | 870rpm | 876rpm | 880rpm |
| Dimension | 1750×900×1510mm | 1950×1010×1680mm | 2250×1235×1650mm | 2400×1500×1900mm |
| Weight | 1200kg | 1450kg | 1960kg | 2510kg |
Vacuum degassers are not operatred continuously. As the entrained gas quantity is not as large as the gas flow out of the choke manifold or the elevating pipe. We can turn it on when entrained gas raise.
For any interes or demand on drilling mud vacuum degasser, please feel free to contact AIPU. You will get professional proposal very soon.
Product Tags:
|
|

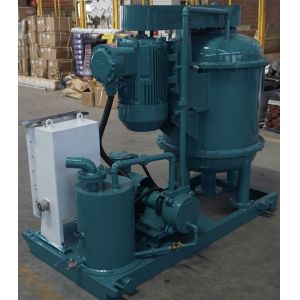

380V 37Kw Carbon Steel Gas Well Drilling Mud Degasser Images
|
